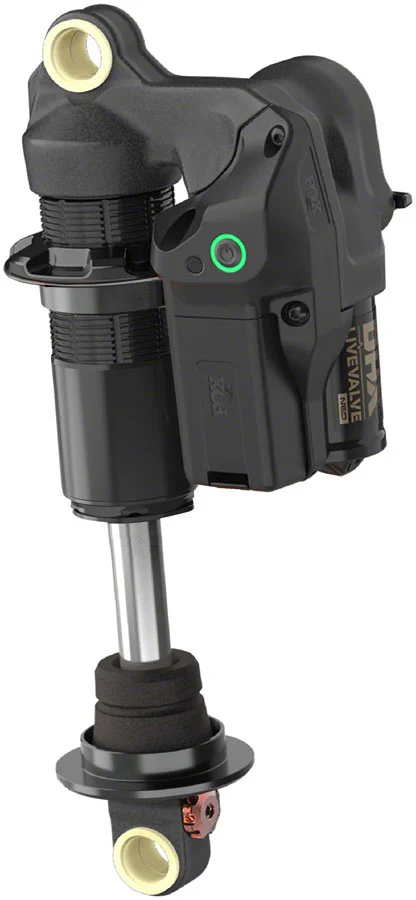

The coil-sprung ground-hugging trail-smoothing performance of DHX powers up with Live Valve Neo for the ultimate in wireless suspension control. By opening or firming the compression circuit based on trail data in 1/70th of a second DHX Live Valve Neo lets you realize your fastest. Live Valve Neo reads terrain inputs 400 times per second and will instantly respond by giving you plushness or support. NOTE: The Live Valve Neo Kit (which includes sensors Controller battery and mounting hardware) is sold separately and is required for the DHX Live Valve Neo shock to function as intended.

IMPORTANT: The Live Valve Neo Kit (which includes sensors Controller battery and mounting hardware) is sold separately and is required for the DHX Live Valve Neo shock to function

2-Position magnetic latching solenoid for quick and quiet transitions between open and firm shock positions

Tool-free firm mode adjuster controls the firmness of the shock's platform when the 2-position solenoid is closed

Numbered tool-free low speed compression adjuster provides 11 position settings that can easily be adjusted trailside

Numbered tool-free rebound adjuster shared with DHX

Shake to Wake function - When activated Live Valve Neo turns on automatically when the bike moves and wheels are bumped

A size-specific piggyback reservoir increases oil volume for enhanced bump sensitivity greater tire grip and fade-free performance over long descents

FOX bike app provides easy setup guides monitors battery levels downloads and engages Live Valve Neo tunes tracks service intervals and more

Stroke (mm)	60
Lockout Switch	Shock Mounted Switch
Metric	Yes
Eyelet Diameter (mm)	12.7
External Adjustments	Rebound Damping
Positive Spring	Coil
Eye to eye length (mm)	230
