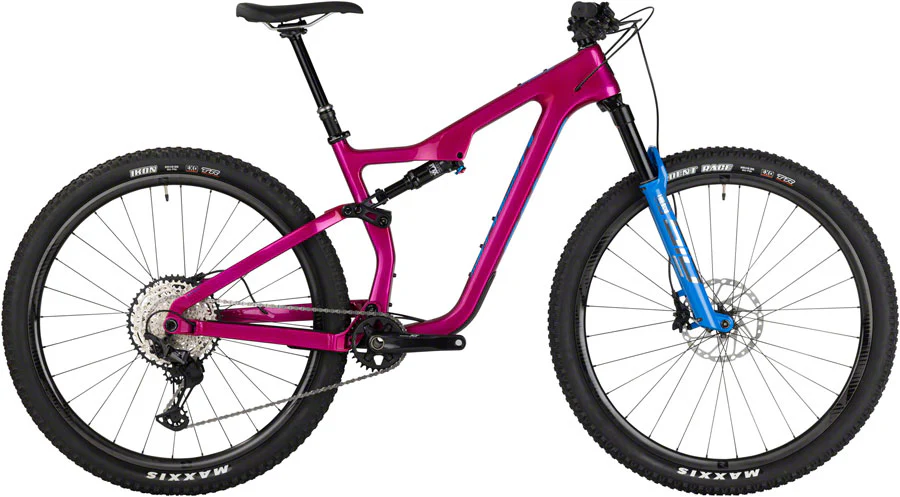

Spearfish is built to crush endurance-testing terrain while thriving on technical climbs and descents. With thoroughly modern geometry and a highly adaptable suspension platform the Spearfish chases XC and distance efforts keeping you at the front of the pack.

Carbon frame and seatstays with 6066-T6 aluminum heat-treated chainstays

Split Pivot suspension design is fully active under braking and supportive throughout its travel for efficient pedaling predictable braking and excellent traction

A short stem paired with long top tube combined with a 67.8-degree head tube angle provides confidence at speed without sacrificing agility

Two full-size bottle cage mounts fit inside the front triangle on all frame sizes. Pair with Anything Bracket for pack-free singletrack bliss

Rear Flip chip adjusts head tube angle and bottom bracket height for terrain wheel size and personal preference

Super Boost 157 x 12mm rear hub spacing combined with a standard width bottom bracket results in a 432mm chainstay length that’s 5mm shorter than previous-generations

Spec’d with a 29 x 2.35" wheel/tire combination but can accommodate a range of additional sizes of 27.5 x 2.8 - 3.0" 29 x 2.35" and 29 x 2.2 - 2.6"

Color	Pink
Mfg Size	Large, Small, X-Large
Rear Axle	12mm Thru x 157mm
Platform	Spearfish
TT (Effective)	592, 635, 657
Brake Type	Disc
Wheel Size	27.5+
Fork Type	Suspension
Frame Material	Carbon
Frame Type	Suspension
Defined Color	Pink
Front Axle	15mm Thru x 110mm
